OUR RANGE OF INDUSTRIAL GEAR UNITS INCLUDES THE RIGHT SOLUTION FOR YOUR APPLICATION

• Damping shaft coupling that can be used universally to compensate for shaft misalignment

• Nominal torque range from TKN = 12 Nm up to 85,000 Nm with 23 sizes

• Temperature range from –50 °C to +100 °C

High-quality solutions for your plant

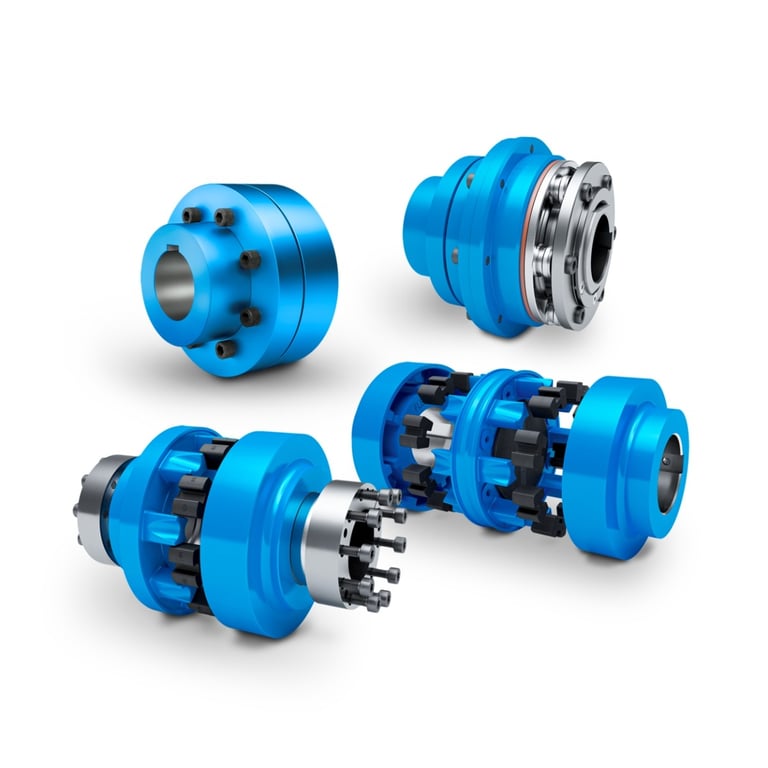

A wide variety of N-EUPEX® types offer optimum coupling solutions for every challenge. Couplings with a double-cardanic design, with torque limiter, with clamping element or short design enrich the extensive modular system of pin couplings. The flexible modular system provides sustainable options that optimize machines and systems and reduce maintenance. A high combination diversity and flexibility is ensured by diverse components.

Robust and proven a million times

Due to their torsional flexibility, N-EUPEX® couplings can move critical torsional vibrations away from the operating area of mechanical equipment in such a way that no negative effects on the drive train are to be expected. N-EUPEX couplings are made of high-quality cast iron. The flexible elements made of synthetic rubber (NBR) are available in different degrees of hardness for many applications. In addition, elastomers made of thermoplastic polyurethane (TPU) and of NBR with fabric inserts for increased load-bearing capacity are offered. Metal pins and flexible elements are designed so that no wear occurs when they are properly fitted.

Your benefits at a glance

• Fail-safe for maximum operational reliability

• Three-part type suitable for plug-in assembly and simplified replacement of elements

• Choice of elastomer hardness to suit various applications

• Suitable for use in potentially explosive environments; certified according to
  2014/34/EU (ATEX)

• High degree of availability of parts ex stock

Established as an industrial standard, worldwide in use

• Mining and Cement: heating technology

• Oil and Gas: pumps, fans, compressors, air condensers

• Power Generation: pumps, fans, compressors, air condensers, water turbines

• Chemicals and Pharmaceuticals: driers, lauter tuns, pumps, fans, compressors, mixers, agitators, reactors

• Plastic and Rubber: single- and double-screw extruders

• Pulp and Paper: wastewater purification plants

• Water and Wastewater: aerators

• Food and Beverage: lauter tuns, reactors, agitators, mixers
